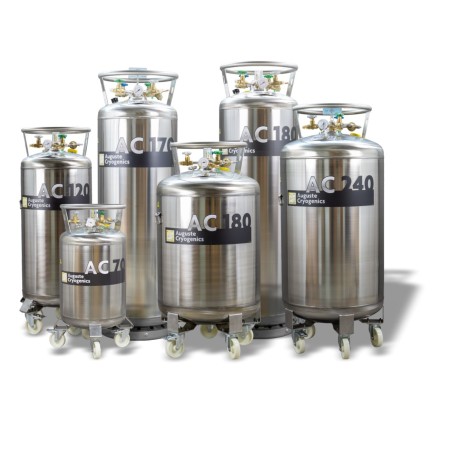

Vertical cryogenic cylinders
Cryocylinder is a cryogenic vessel for storage, transportation and gasification of liquid oxygen, nitrogen, argon, carbon dioxide.
It consists of inner and outer vessels with screen-vacuum insulation in-between. With the help of an integrated vaporizer, the liquefied gas is converted to a gaseous state by means of heat exchange with the inner wall of the outer vessel.
local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details
Cryogenic cylinders are equipped with all necessary globe, safety, and control valves. The use of cryocylinders increases efficiency and economy of technical gases supply.
Advantages of cryocylinders:
- no power consumption required;
- one person is needed for equipment operation;
- no losses with constant, minimal product supply;
- inner vessel is made of stainless steel, which ensures provision pure gaseous product;
- safety: operating pressure is up to 20 bar maximum (as opposed to cylinders with operating pressure of 150 bar);
- no costs for maintaining a fleet of cylinders and additional labor resources;
- no registration in The State Service of Mining Supervision and Industrial Safety.
Documents provided:
- Quality certificate
- Certificate of origin
- Operation manual
- Test report
- Technical passport
- Applications
- transportation and stationary storage
- Liquids pumped
- liquified natural gas, nitrogen, argon, oxygen, carbon dioxide
- Volume
- from 73 to 253 l
- Useful volume
- from 70 to 240 l
- Operating pressure
- up to 20 bar
- Materials
- stainless steel
- Height
- up to 1545 mm
- Diameter
- up to 660 mm
- Component parts
- inner and outher vessels, vaporization coil, globe, safety, and control valves
