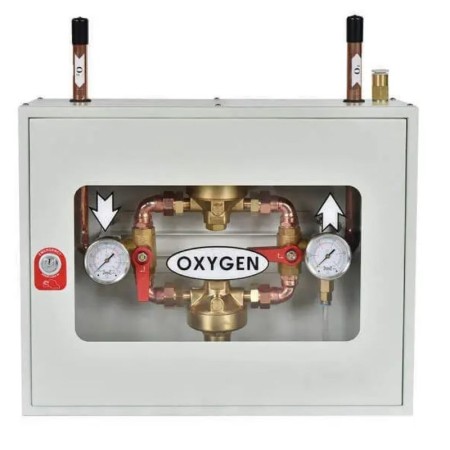

Dual-line regulating stations (reducing unit)
The dual-line regulating station (reducing unit) is an important element of the medical gas supply system in hospitals. It provides medical gas supply and gas pressure control, and is also used to open/shut off the passage of pipelines in this area to facilitate the maintenance of pipelines and equipment.
local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details
The dual-line regulating station (reducing unit) is mounted on the wall. Equipped with a safety valve. The front window is made of transparent plexiglass for easy pressure monitoring and is lockable. In the event of an emergency, the unit’s window can be easily opened to quickly shut off the medical gas passage.
A dual-line regulating station controls the pressure in the medical gas pipeline. It can also compensate for pressure in the pipeline, reduce the impact on the patient.
Characteristics:
- transparent window;
- double line, one for normal operation and one for standby;
- the gas leakage valve is set to regulate the outlet pressure;
- built-in safety valve;
- inlet pressure range 12 ~ 25 bar, outlet pressure range 4 ~ 10 bar, flow rate 2000 l/min;
- Equipped with an emergency safety lock to open the door quickly in an emergency.
- Inlet pressure
- from 1.2 to 25 MPa
- Outlet pressure
- from 0.4 to 1 MPa
- Throughput
- 2 500 l/min
